Brand: | PEDAX |
Machine Type: | Straightning |
Single Wire Size: | 12 |

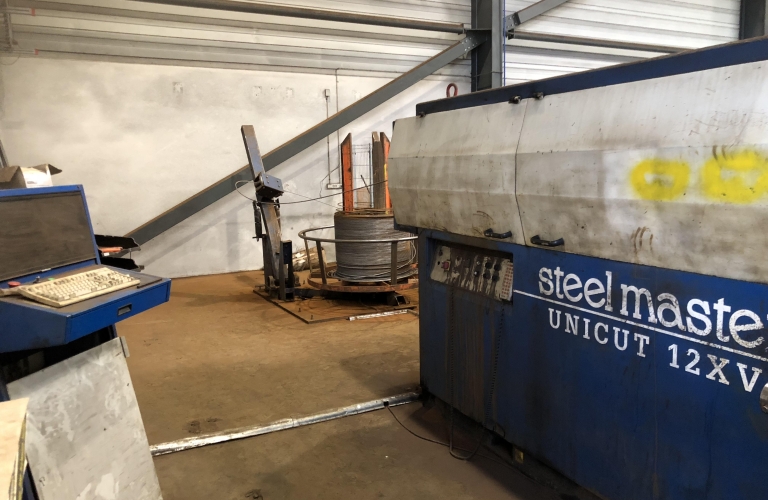

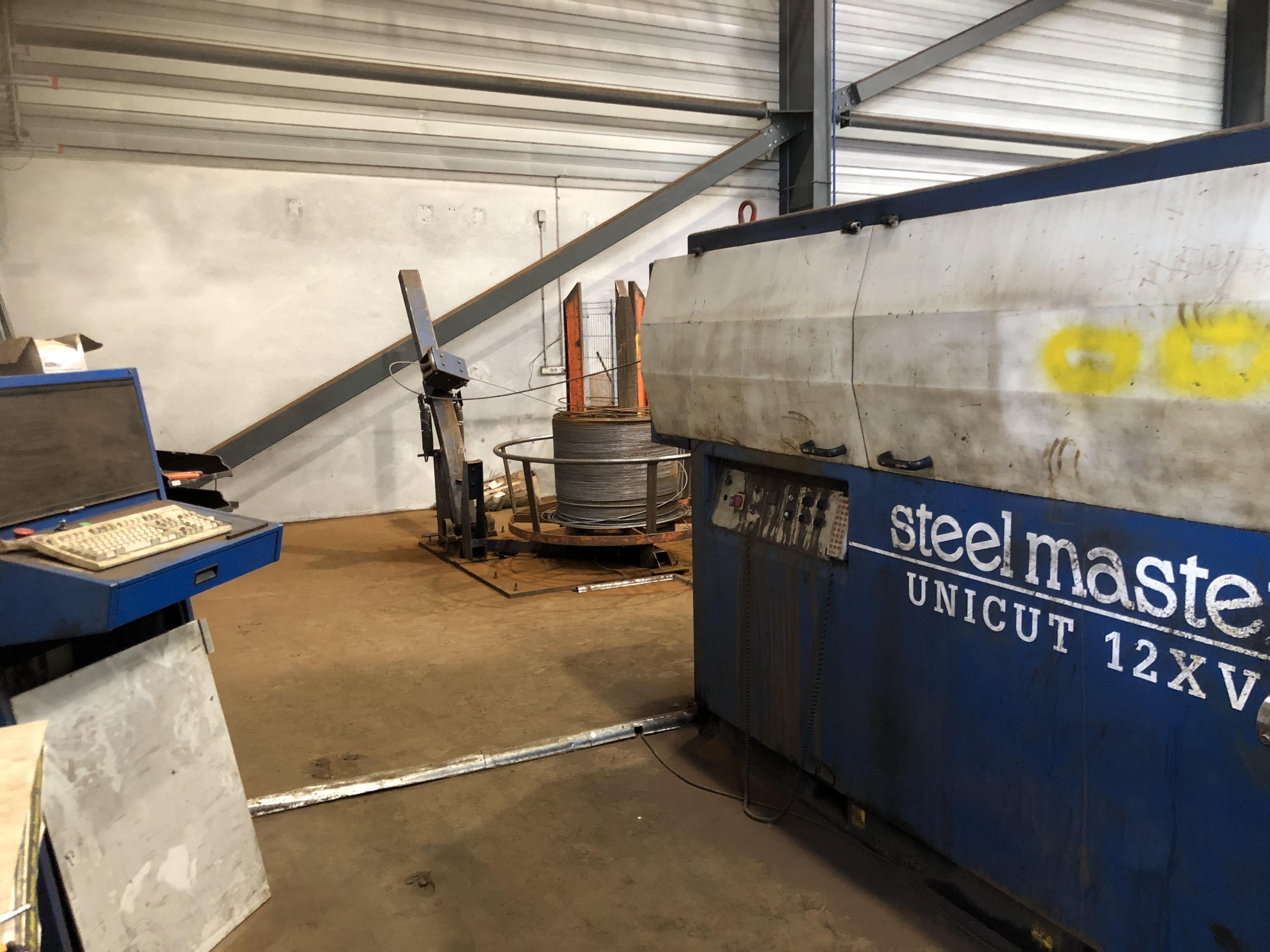

Unicut 12xv incl. 12meter bench and 1 payoff.
| Steel grade | 700 N/mm² | ||||||||
| Wire diameter | 5/6 - 12 mm (Unicut 12 XV) | ||||||||
| Rate of feed | 180 m/min | ||||||||
| Machine dimension: Length Width Height | 2986 mm ( 1300 mm 1950 mm | ||||||||
| Maschine weight | 3400 kg | ||||||||
Bar collector
|
| ||||||||
| Pay-off reel heavy duty | |||||||||
| Operating voltage | 3 x 400 V / 50 Hz | ||||||||
| US voltage | 3 x 480 V / 60 Hz | ||||||||
| Input fuse | 80 Amp | ||||||||
| Connected load | 32 kW | ||||||||
| Average power consumption | 8-14 kW | ||||||||
| Pump pressure | 90-170 bar | ||||||||
| Control voltage | 24/220 V | ||||||||
| Drawing power of feeding rollers | 12000 N | ||||||||
| Production tolerances bars | -/+ 1 mm/m |
Unicut 12xv incl. 12m bench and 1 payoffs (aditional can be offered) - machine comes fully refurbish...
