PEDAX Twinmaster 16 II 2024041

 Description

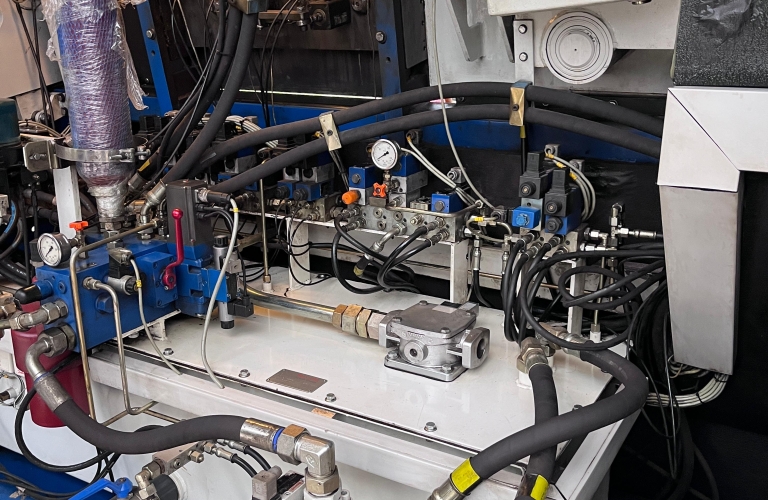

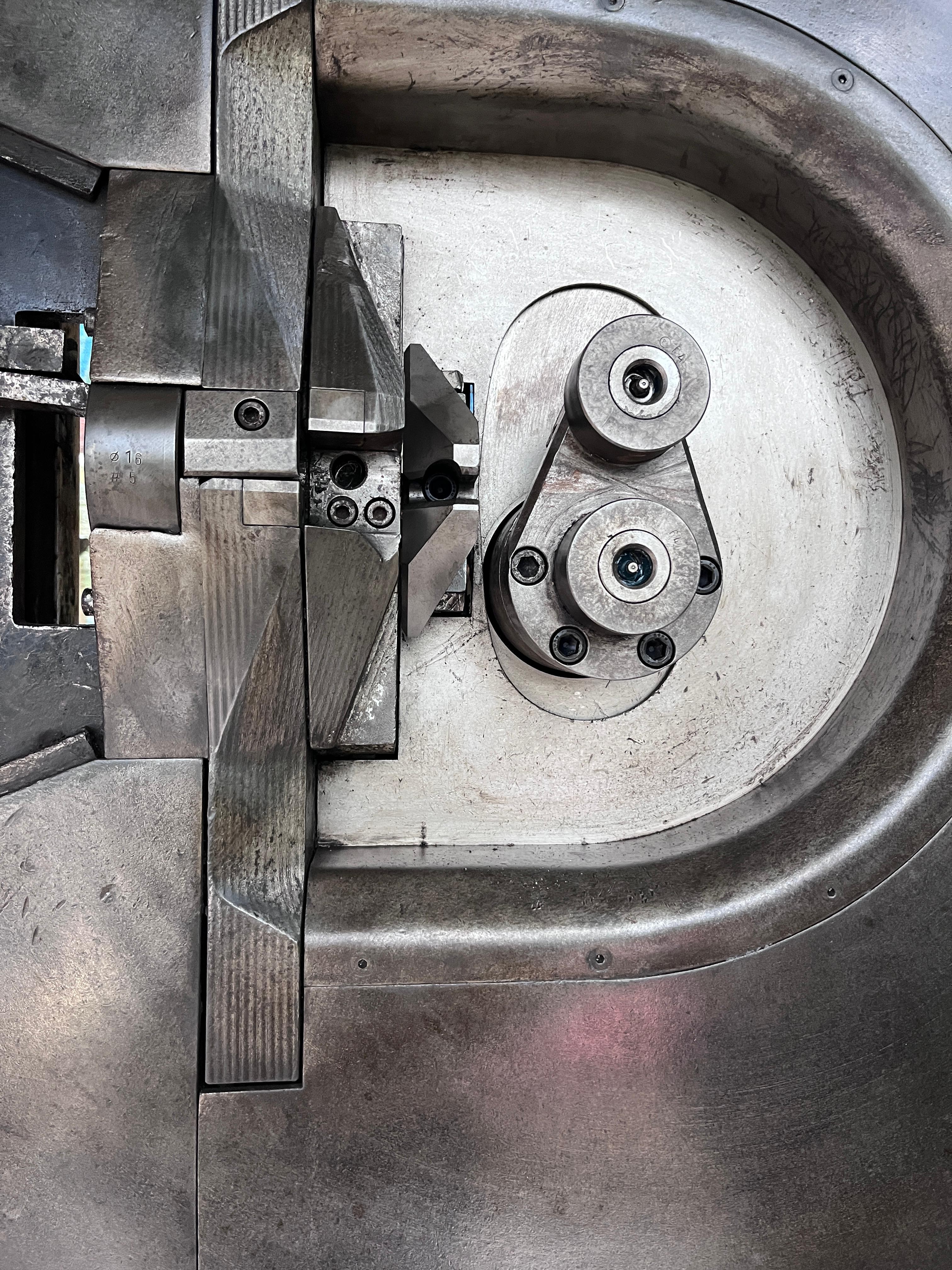

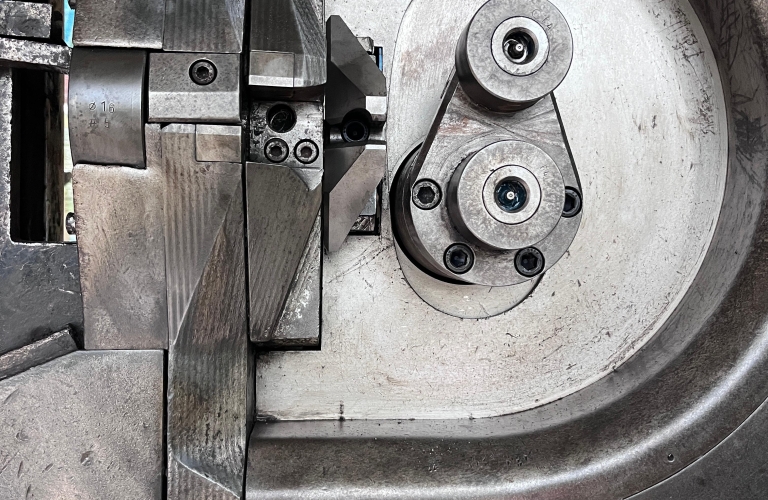

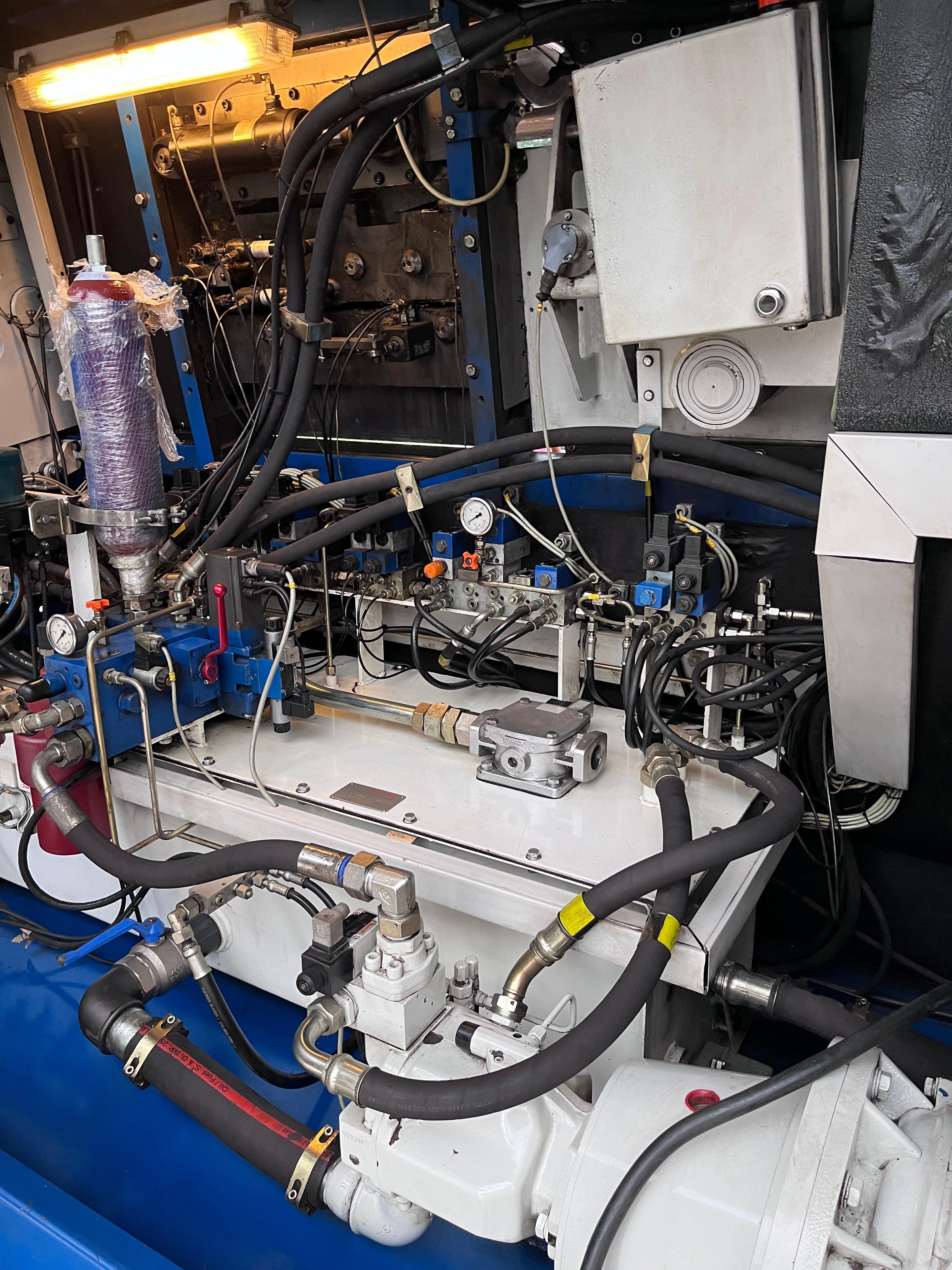

Automatic stirrup bender with modern proportional hydraulic system. The Twinmaster 16 II represents the very best in straightening and and feeding technology of hot rolled wire with square, round, or oval profiles in diameters of 6 mm to 16 mm, and in double strand up to 12,7 mm. Due to the modern designed front shape of the machine, the improved cutting and bending system and the proven anti-twist straightening roller - the Twinmaster 16 II can produce perfectly closed, non-twisted stirrups and shapes from any grade of hot rolled wire.
 Technical Specifications

Brand:

PEDAX

Double Strand Wire Size:

2 x 12

Machine Type:

Stirrup Machine

Single Wire Size:

16

  • Machine info:

    Twinmaster 16II, from 2005, 6 payoffs. Very good working condition. 1646 hours of work.



  • Twinmaster 16 II - hydraulic stirrup bender

    Technical specifications

    Steel grade700 N/mm²
    Wire diameterSingle strand: Ø 6-16 mm and double strand: Ø 6-12 mm
    Rate of feed, max.150 m/min
    Bending speed, max.1200°/sec
    Bending angle0-180°

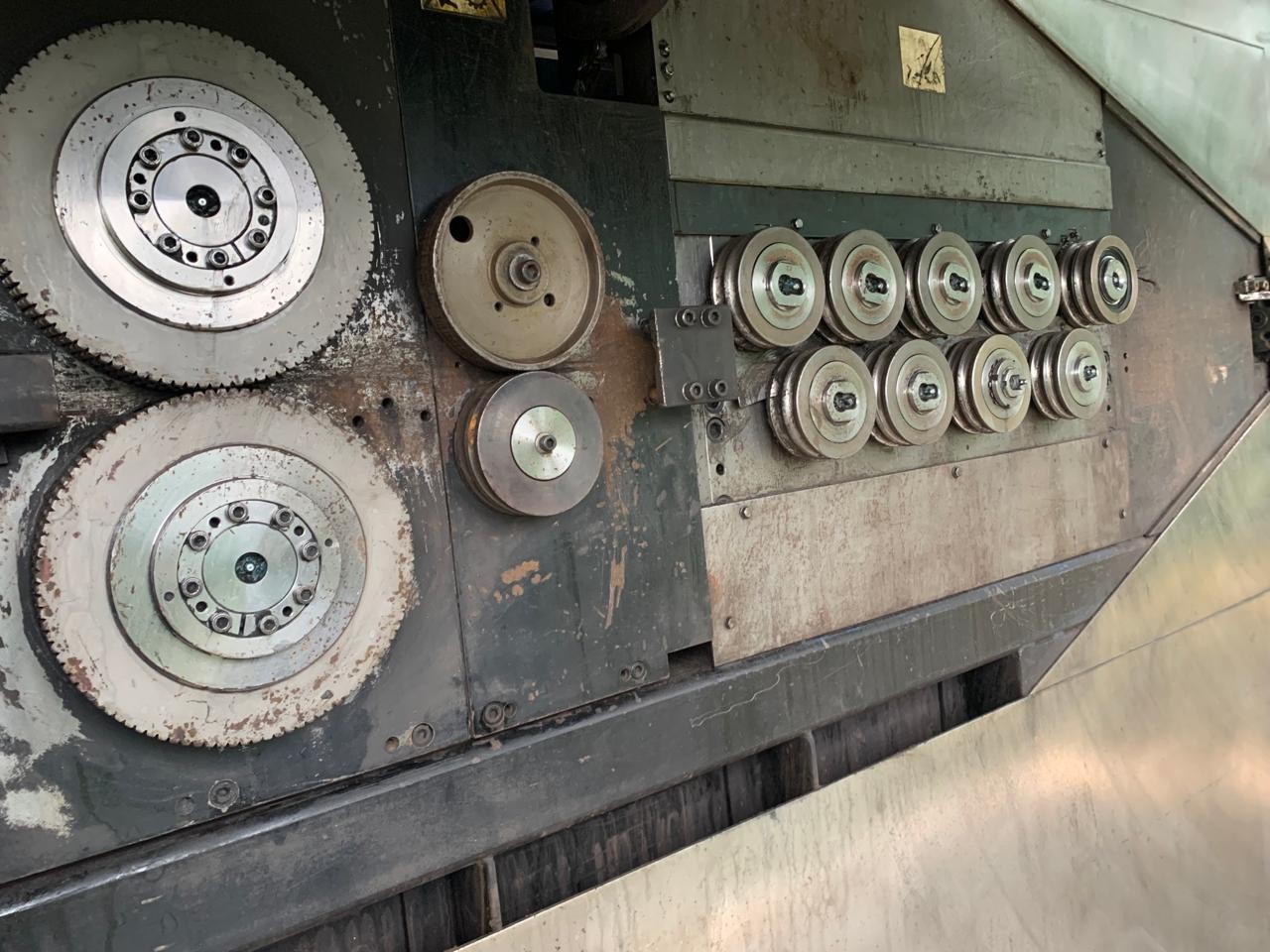

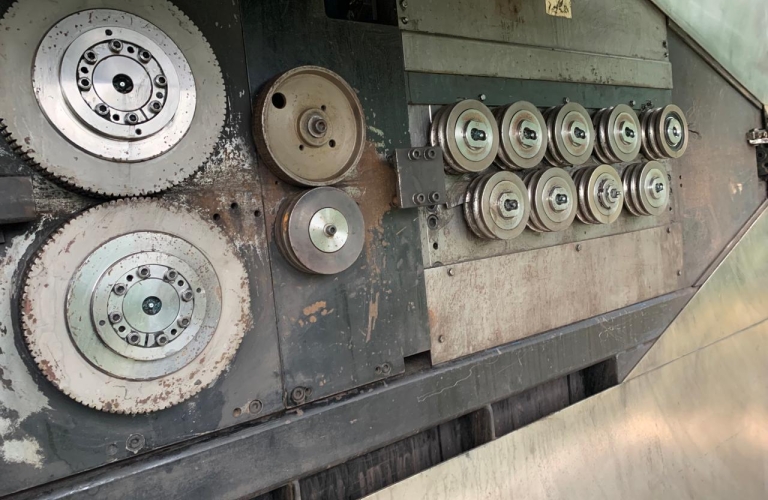

    Straightening rollers18
    Gross weight machine6000 kg
    Gross weight decoiler1100 kg
    Gross weight double bending
    unit 6/12 m
    3500/5500 kg
    Operating voltage3 x 400 V / 50 Hz
    Connected load39 kW
    Average power consumption5-8 k
    Tolerances:
    Stirrups

    Straight bars and
    large
     bending shapes
    +/- 1 mm/m; +/- 1°

    +/- 1 mm/m; +/- 1°


  • Production year:
    2005
