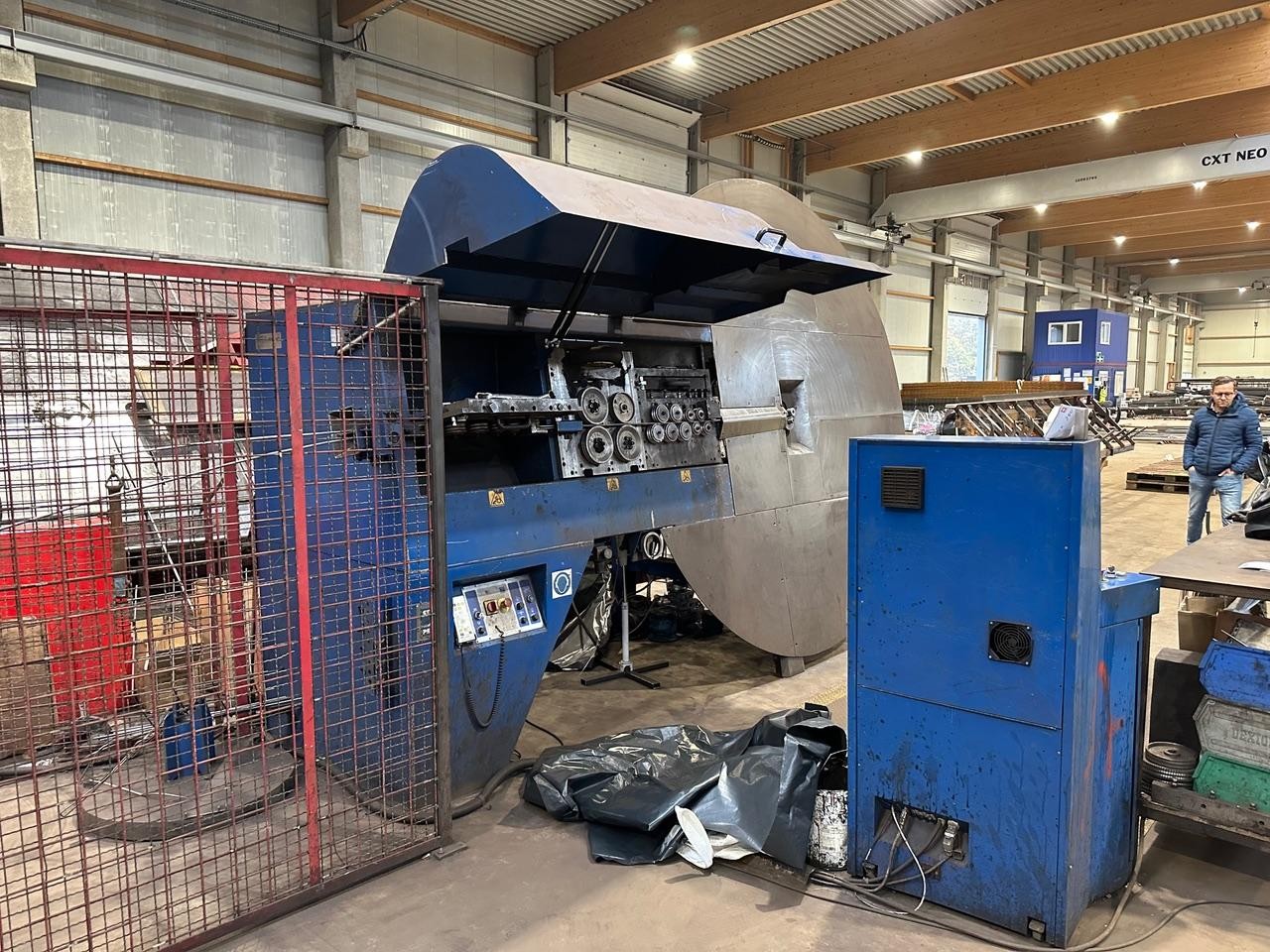

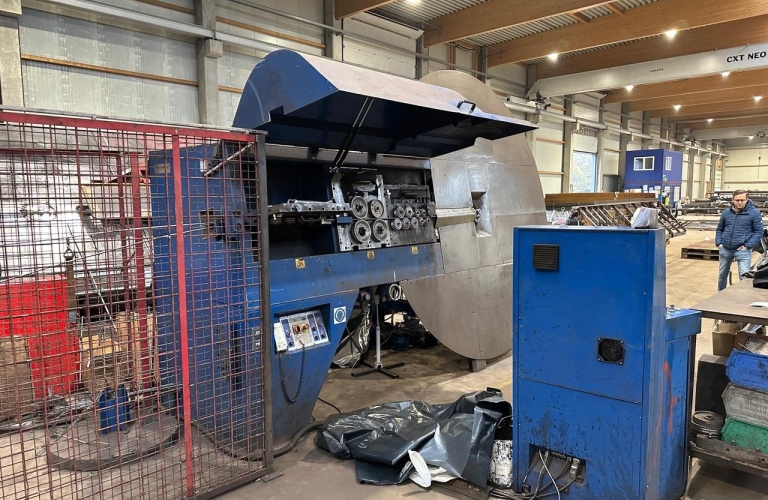

PEDAX Twinmaster 12 S - servo-driven stirrup bender 2025004

 Description
Automatic stirrup bender with servo drive for single-strand up to 12,7 mm and double-strand from 5 to 10 mm diameter. On request the machine can be supplied wit our patented Anti-Twist System, which can easily be adjusted during production by means of a handle at the front of the machine. The "Logic-Soft" software is a standard feature, which, together with the new control panel, provides the most user-friendly system on the market. The special design of the machine permits the use of a collecting bench for straight bars, a special bench for L-shapes and enables a trolley for putting orders together to be placed under the bench. The machine design also makes it possible for a commissioning trolley to move back and forward freely while filling with processed materials. Due to the size combination of the straightening rollers both hot-rolled and cold-drawn wire can be processed at high speed and produce a good quality end product.
 Technical Specifications

Brand:

PEDAX

Double Strand Wire Size:

2 x 10

Machine Type:

Stirrup Machine

Single Wire Size:

12

  • Machine info:

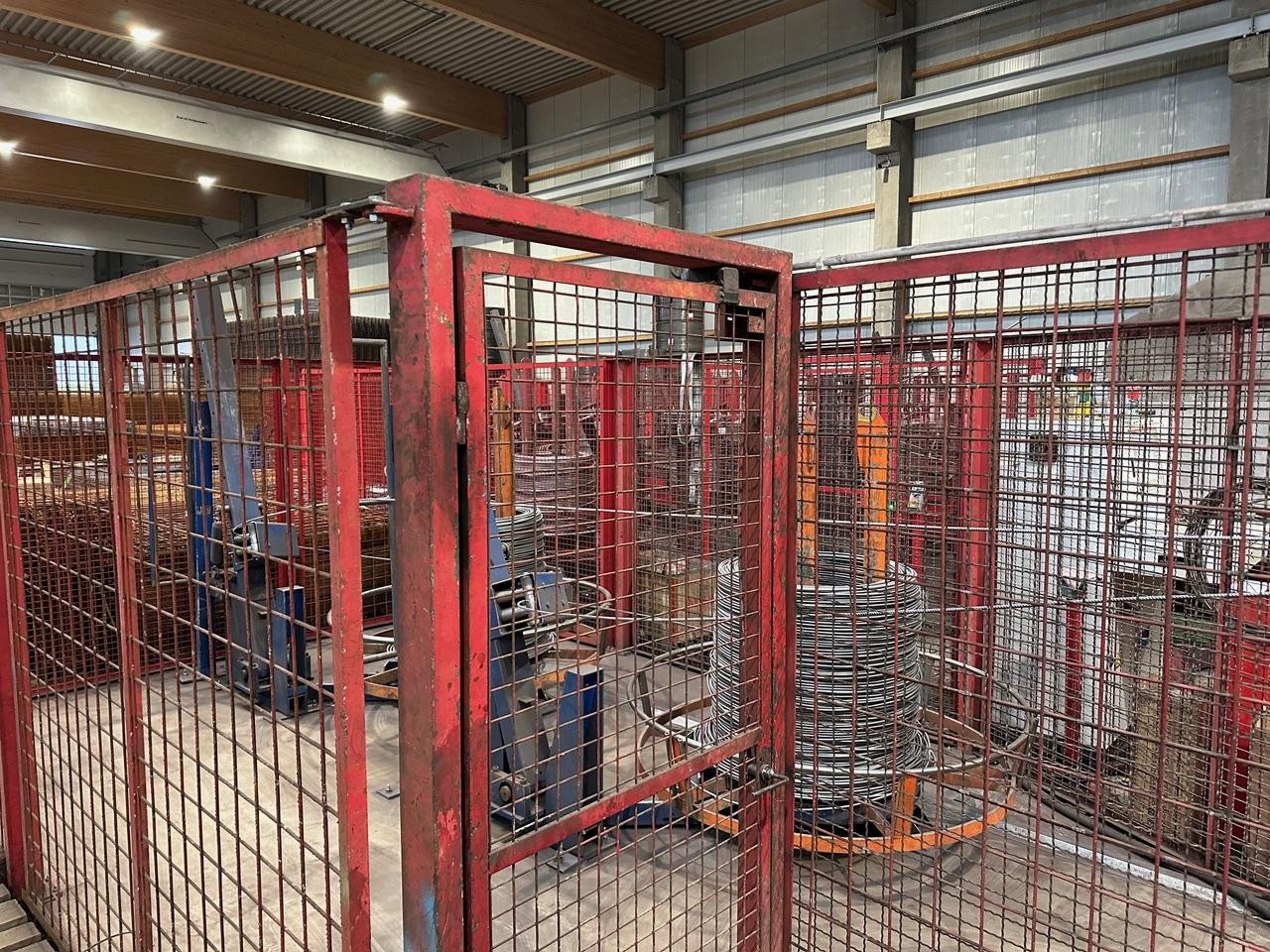

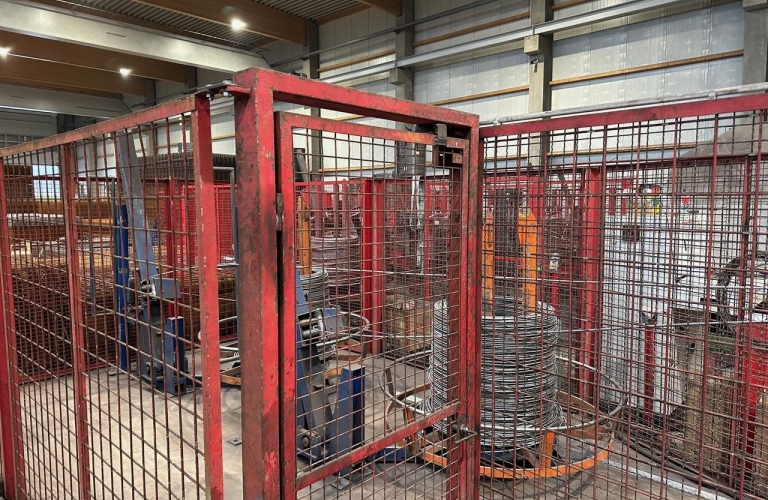

    Used Twinmaster 12 S, from 2004, 2 payoffs

  • Steel grade700 N/mm²
    Wire diameterSingle strand: Ø 5-12,7 mm and double strand: Ø 5-10 mm
    Rate of feed, max.110 m/min
    Bending speed, max.1500°/sec
    Bending angle0-180°
    Weight2.750 kg
    Dimensions (L x W x H)4270 x 1600 x 2100 mm (extented working surface 2900 mm)
    Operating voltage3 x 400/ V/50 Hz
    Connected load18 kW
    Average power consumption3-5 kW
    Main fuse63 Amp
    Air pressure/consumptionMax. 8 bar/approx. 150 l/min
    Drawing power of feeding rollers10.000 - 16.000 N
    TolerancesSide lengths +/- 1 mm/m
    Angles +/- 1°
    Bars +/- 1 mm/m
  • Production year:
    2004
