PEDAX Simplex 45 HV 2024063

Description

The internationally well-known Simplex rebar shearing machines have been built and sold succesfully since 1925. These modern production units are of extremely robust design, easy to operate and almost indestructible. PEDAX has a decade-long tradition of providing Simplex shearing machines in different performance classes. The Simplex is ideal as part of a mobile or a stationary shearline. Simplex shearing machines sizes 45 H and 60 H are available in either horizontal or vertical design as HV types.

Technical Specifications

Brand:	PEDAX
Machine Type:	Shearline

More specifications

Machine info:

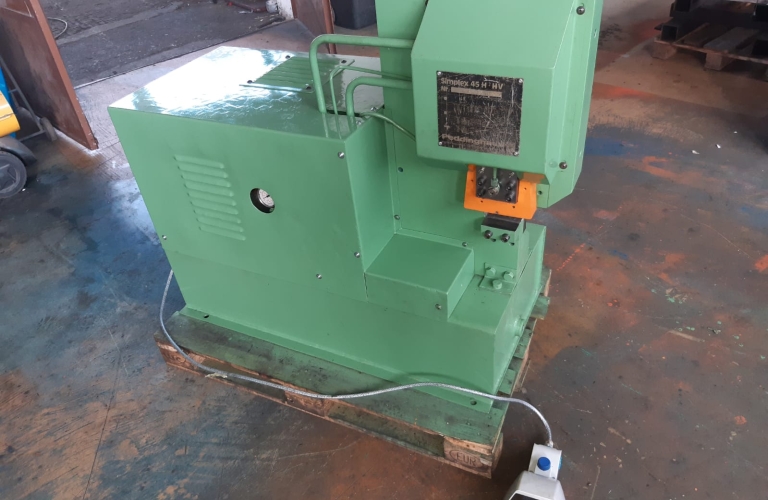

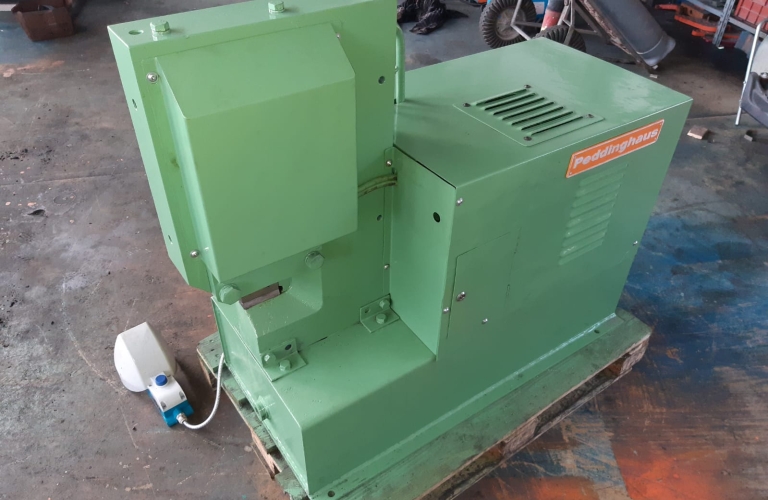

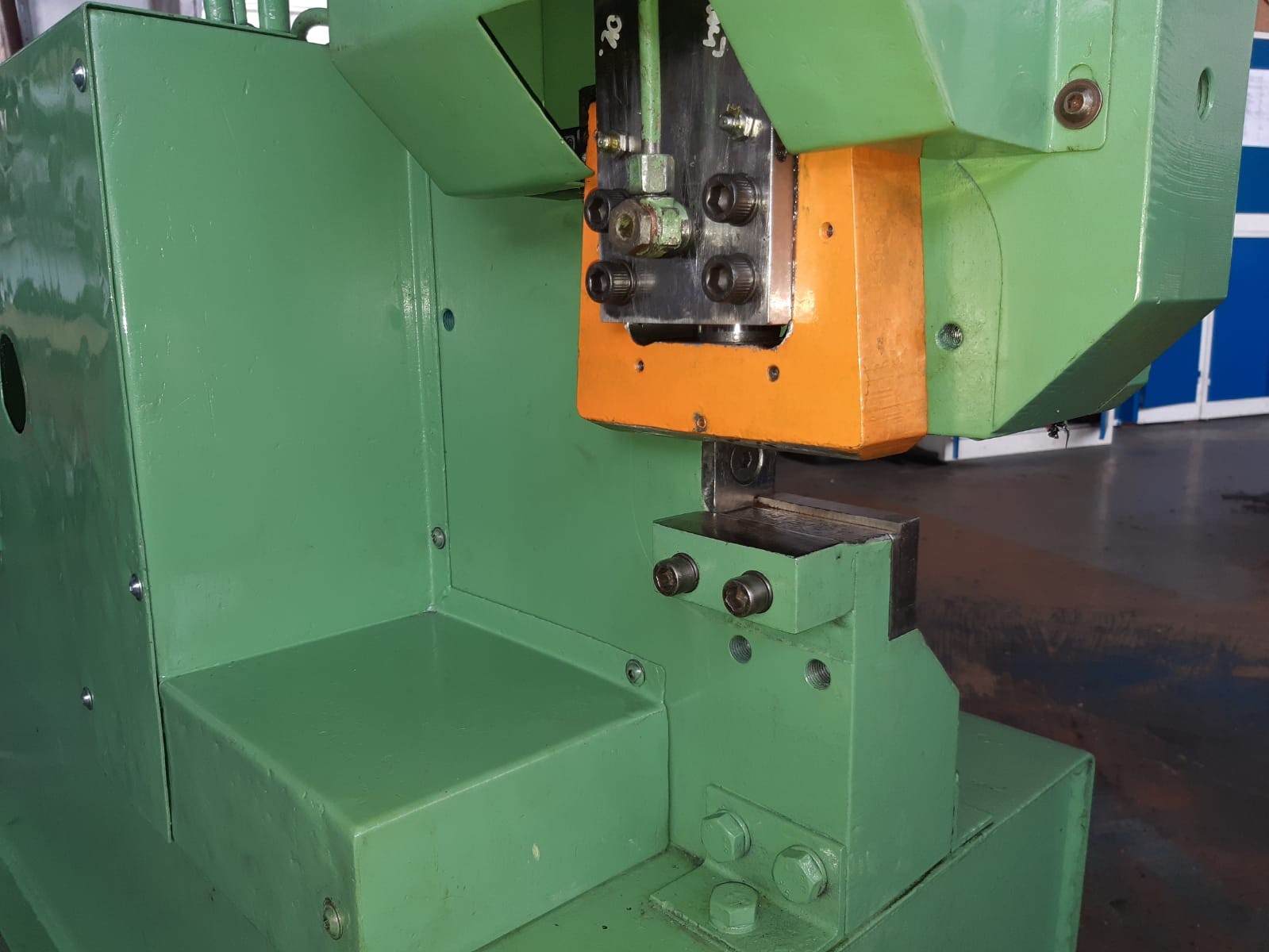

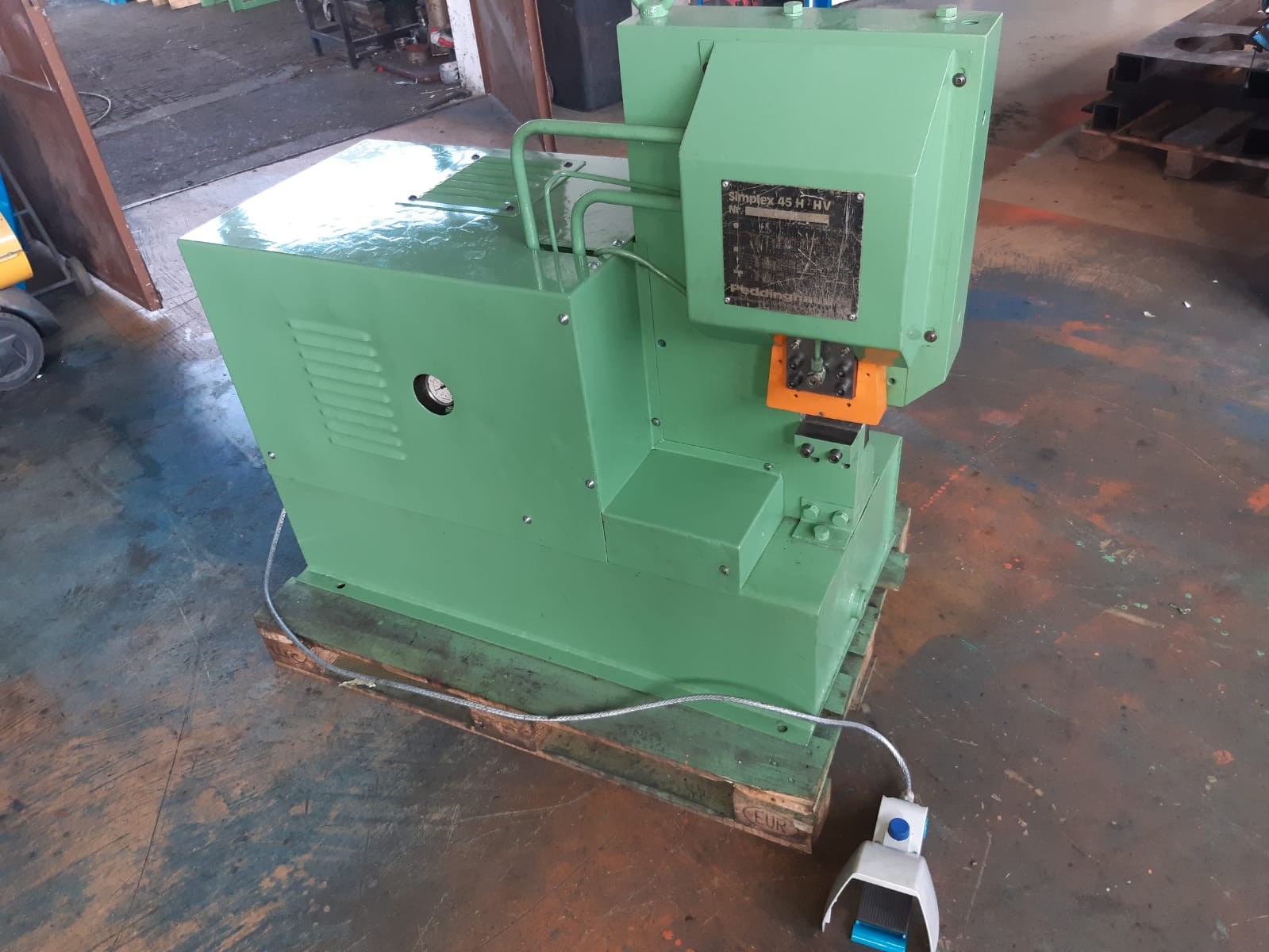

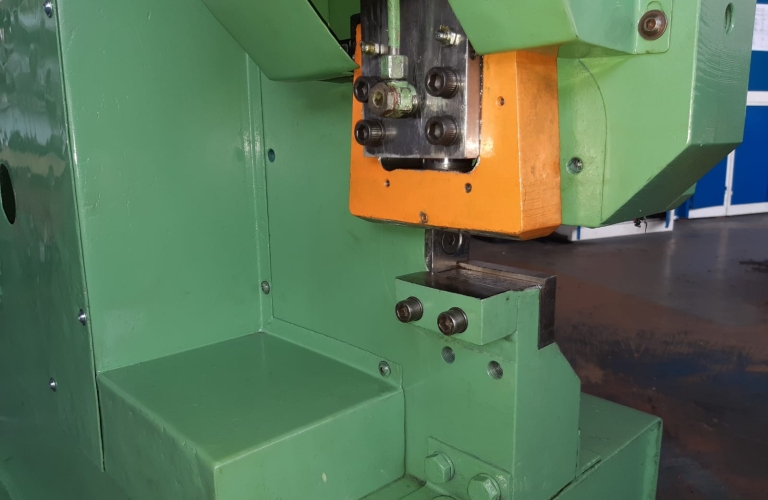

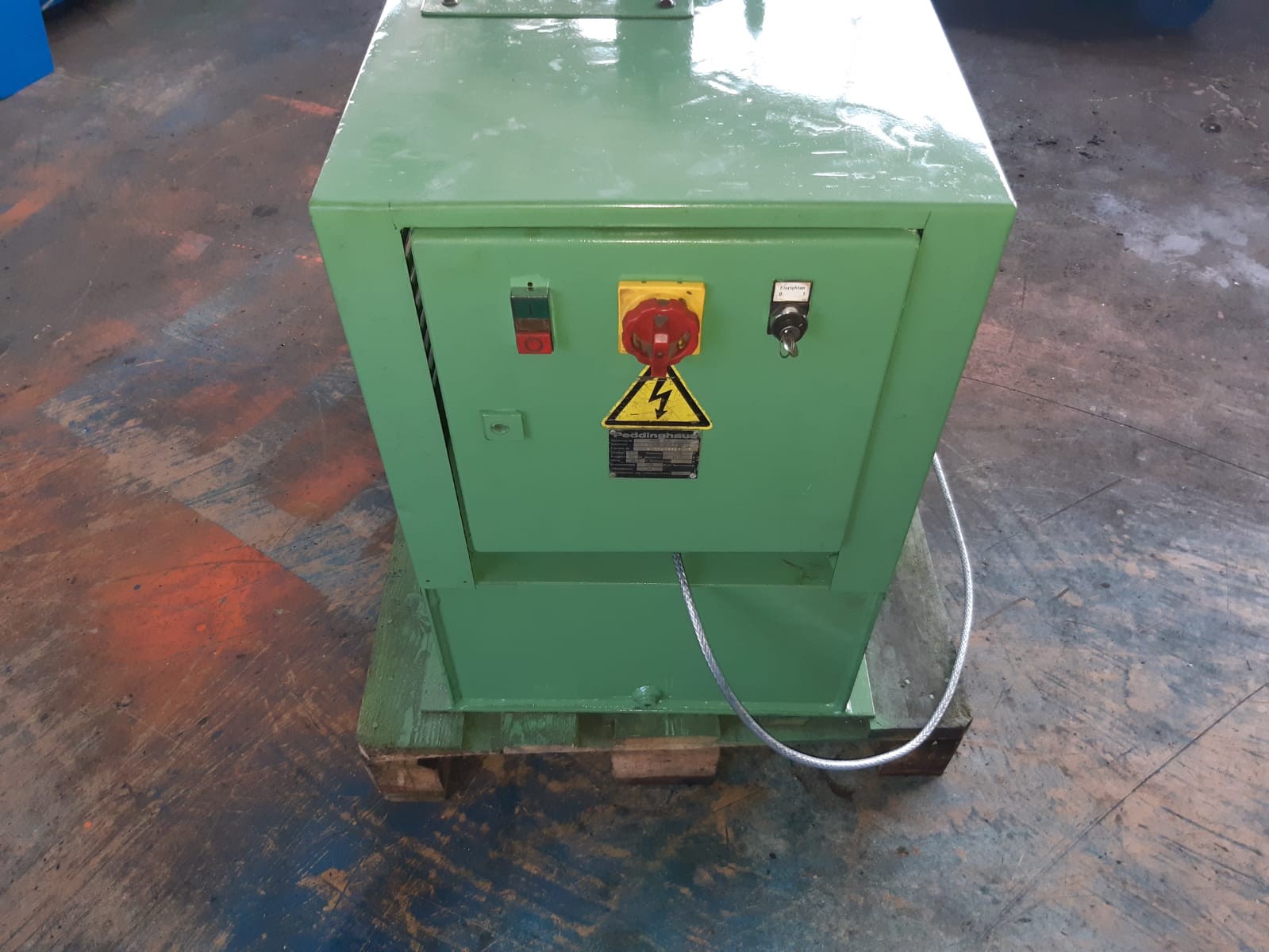

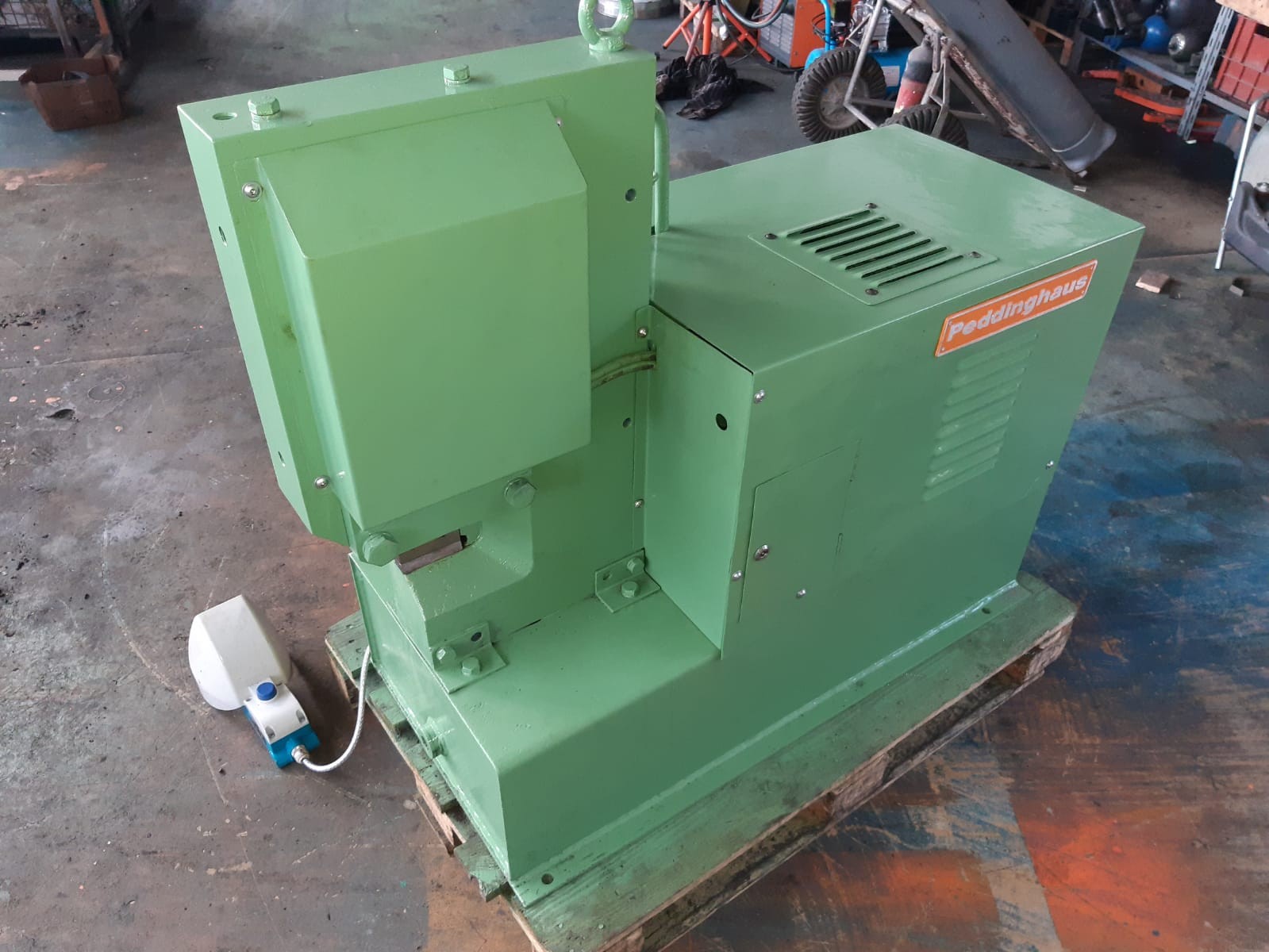

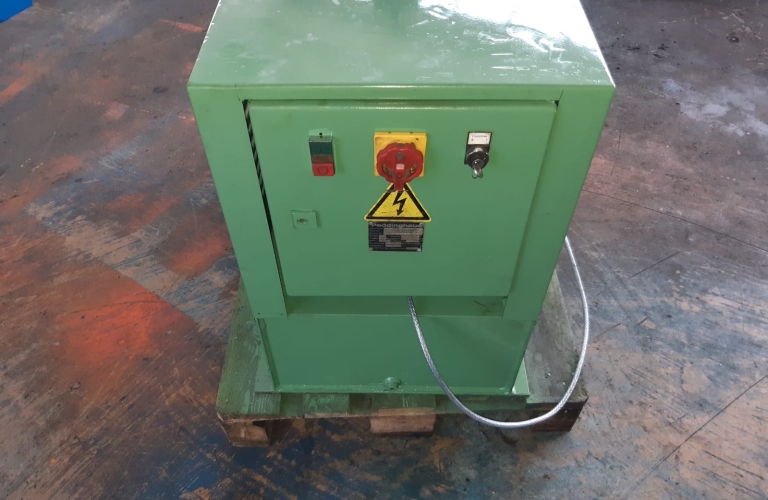

Simplex 45 HV rebar shearing machine

Simplex H/HV

		Simplex 45 H	Simplex 45 HV	Simplex 60 H	Simplex 60 HV
Cuts	per minute	20	20	20	20
Blade length	mm	90	90	125	125
Connected load	kW	5,5	5,5	11	11
Net weight	approx. kg	900	900	1200	1200
Machine dim.	mm	1420x891x770	1250x590x1420	1700x810x1000	1450x630x1565

Cutting capacities
Simplex 45 H/HV
Rebar-Ø		6	8	10	12	14	16	20	28	32	35	40	45	50	60
Number of bars at:	450 N/mm²	50	28	18	12	9	7	4	2	2	1	1	1
	850 N/mm²	26	15	10	7	5	4	3	1	1
Simplex 60 H/HV
Rebar-Ø		6	8	10	12	14	16	20	28	32	35	40	45	50	60
Number of bars at:	450 N/mm²	90	53	40	25	19	14	9	4	3	2	2	1	1	1
	850 N/mm²	53	30	26	14	11	8	5	3	2	2	1	1

Production year:
2006
