PEDAX Pilemaster 200/1500 DC 2021036

 Description

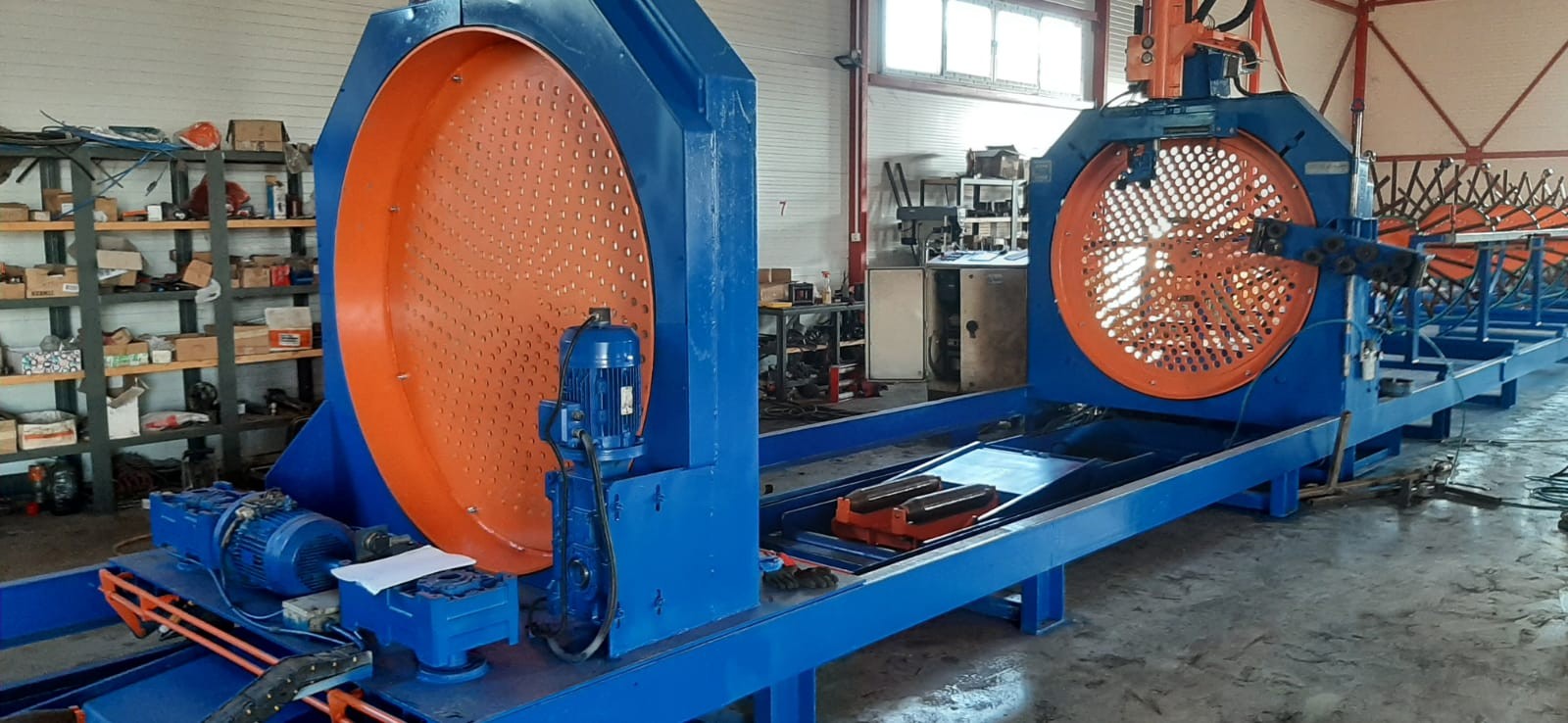

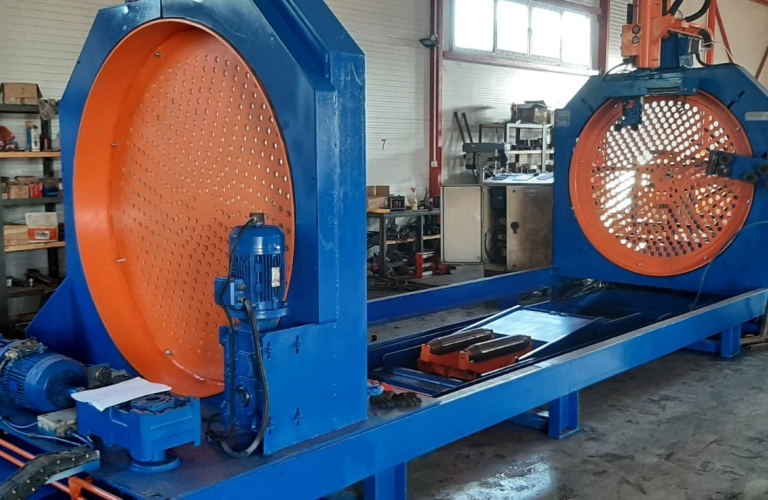

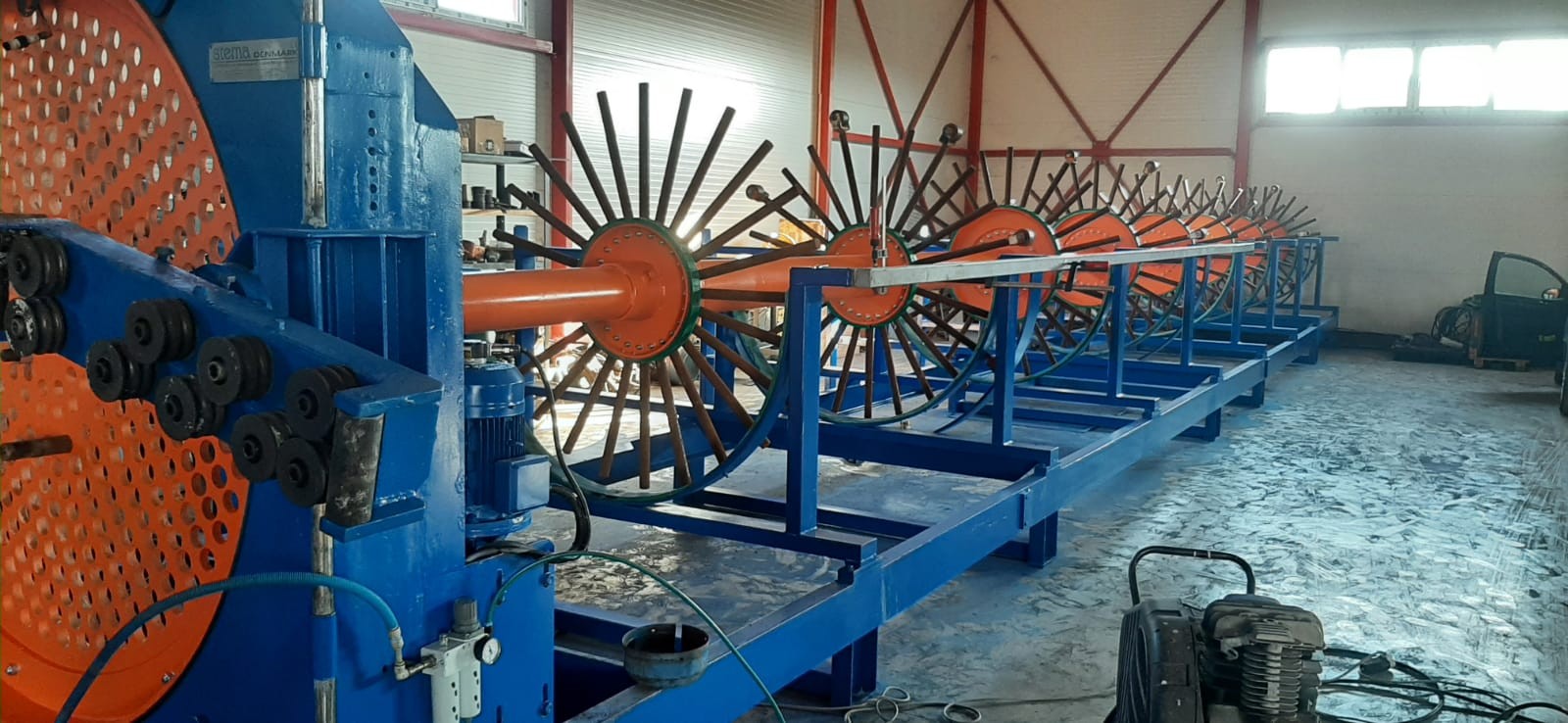

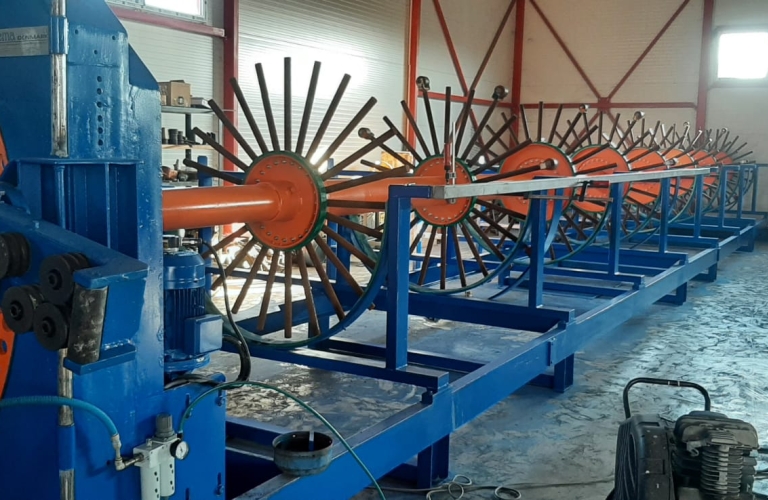

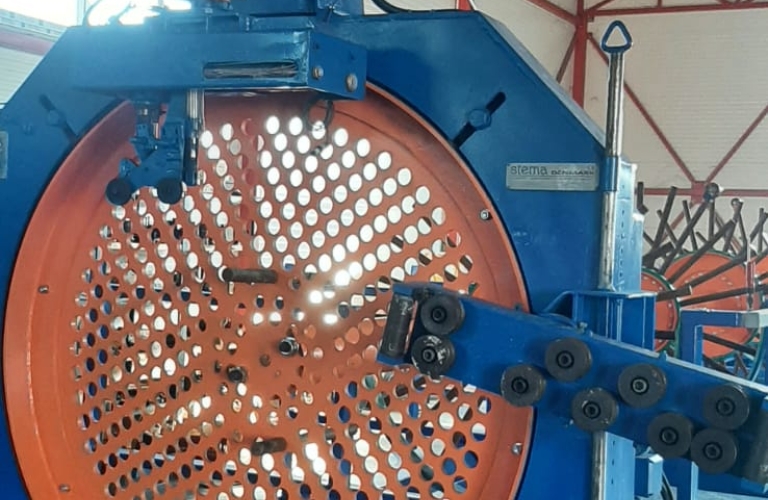

Pilecage machine for reinforcement piles of both small and big dimensions for foundations, piling, viaducts etc. Our PileMaster releases cylindrical cage according to your needs. The machine required by the clients is supplied with welding robot. The Pilemaster produces cylindrical and squared piles of different dimension and length, with welded spiral and programmable pitch. The machine is supplied with heavy-duty supports that give the machine stability and power; a fixed disc and a movable one with holes on request by the client, a controlled system for rotating disc and recipes. The welding robot can be supplied on request.
 Technical Specifications

Brand:

PEDAX

Machine Type:

Pile cages

Pile Cage Ø:

1500

Single Wire Size:

40

  • Machine info:

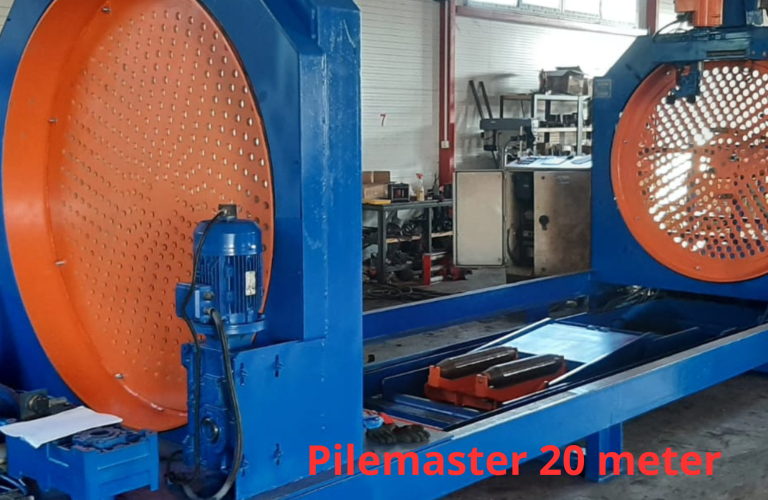

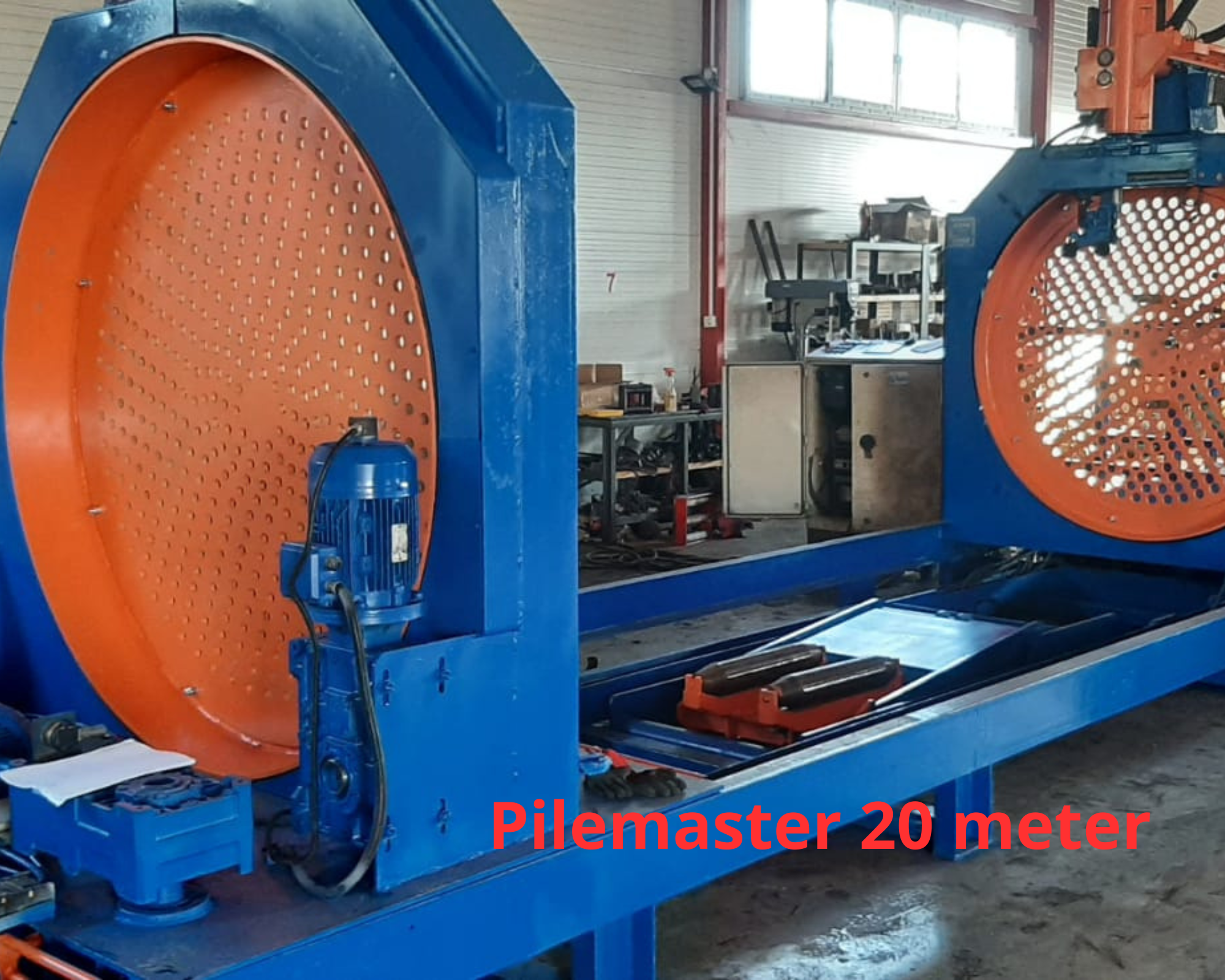

    20 meter machine!

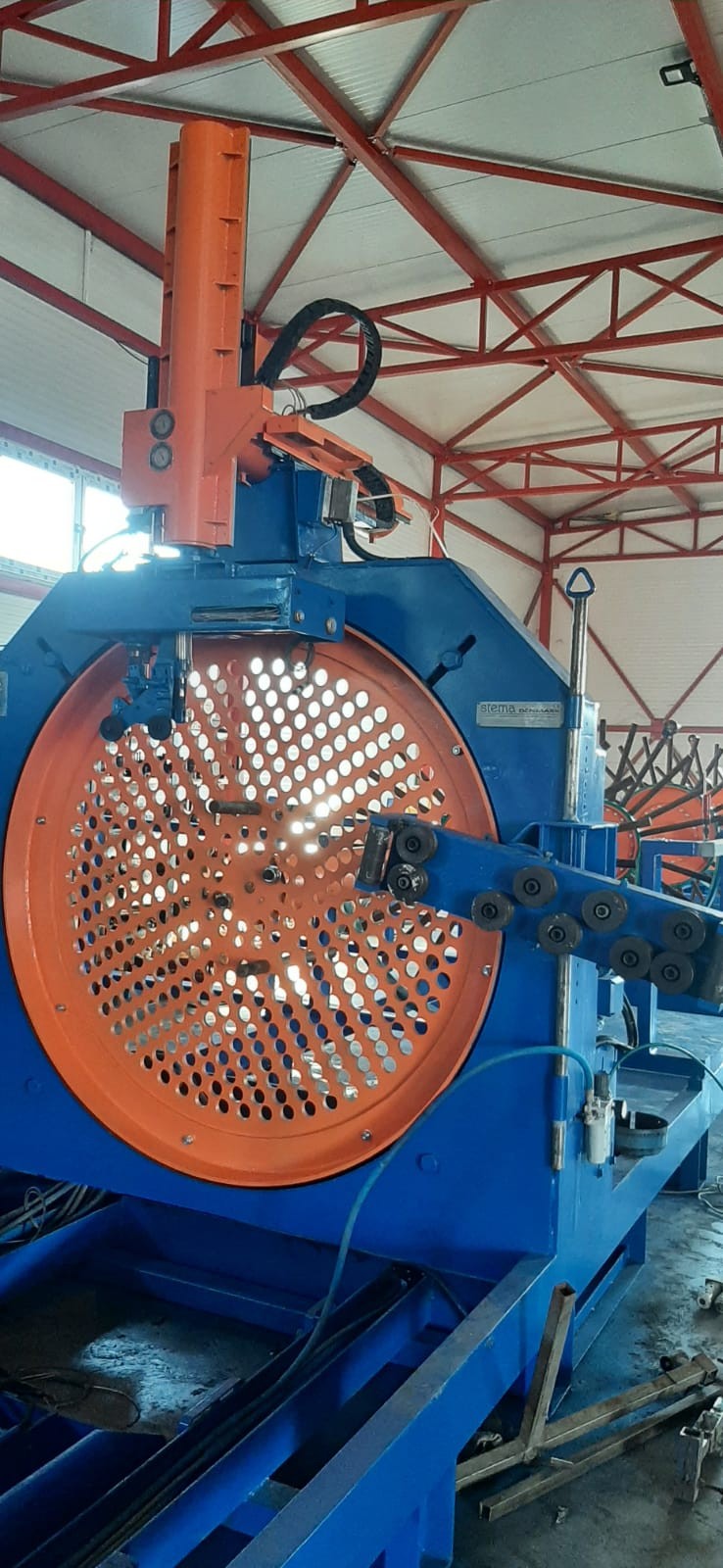

    Pilemaster 200/1500/20 m. Equipped with welding robot.

  • Technical specifications:



    PM 200/1500 - 12m

    Cage diameter:



    Max.
    Min.

    1500 mm
    200 mm

    Spirals:



    Wire diameter
    Pitch

    6-16 mm
    50-500 mm

    Longitudinal bar diameters:

    10-32 mm
    40 mm on request

    Max. cage weight

    8 t

    Rotational speed, incl. welding:
    No welding:
    Time per spot weld:


    1-6,5 r.p.m.
    1-8,2 r.p.m
    0,5-2 sec

    Dimensions:



    Length x width x height of the system for 12 m cages

    27,7x5,7x3,3 m

    Total weigth of the overall system

    14 t

    Connected load for Pilemaster

    11 kW

    Connected load for Pilemaster with welding robot and welding installation

    11 kW

    Average electricity consumption Pilemaster

    5 kW

    Average electricity consumption for the MIGATRONIC welder

    11 kW

    Control with airconditioning (option)

    PLC Frequency converter



  • Production year:
    2007
