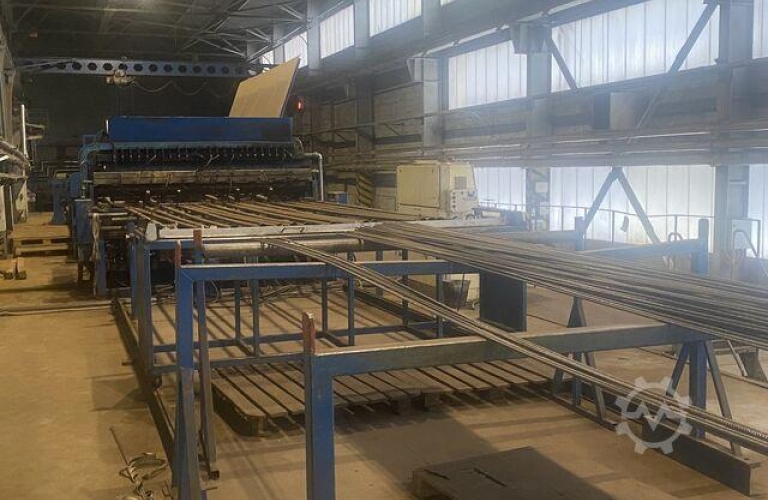

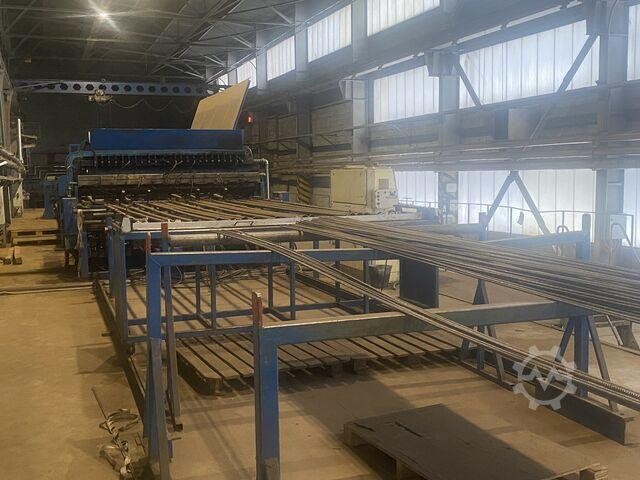

Mesh machine VIDA VRES 2025005

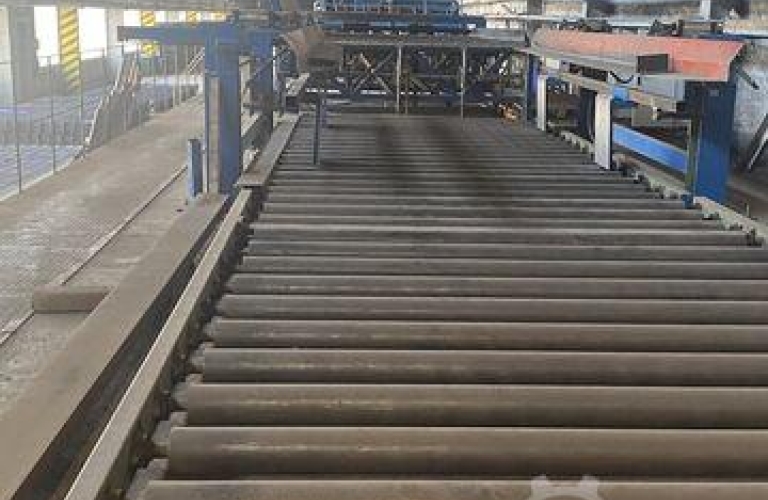

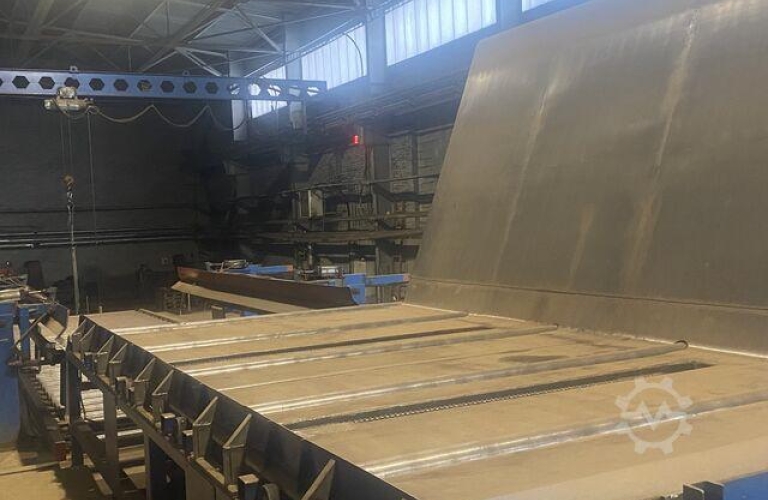

Used VIDA VRES mesh machine, from 1998. Working condition.

Of the mesh:

Width of mesh (length of transverse bar) max min 2400 mm - 1500 mm

Length of mesh (length of longitudinal bar) max min 6000 mm - 3000 mm

Distance between longitudinal bars (between center axes) max 2400 mm

Longitudinal pitch 150 – 200 mm

Transverse pitch 50 – 200 mm

Diameter of longitudinal bars 5,0 – 10,0 mm

Diameter of transversal bars 5,0 – 10,0 mm

Longitudinal hangovers

In the beginning 25 – 200 mm

At the end 100 – 200 mm

Transversal hangovers 10 – 400 mm

Number of longitudinal bars max 16 pcs

Of the machine:

Electrical current

Three-phase current 400V, 50Hz

Control current 24V

Permissible voltage fluctuations of the electrical network ±10%

Recommended connection power 600 KW

Recommended power for welding in cascading mode ~60 KW

Cooling water

Inlet temperature max 25ºС

Pressure - max 1,5 Bar

Supply and return pressure 3,5 Bar

Water hardness according to German scale, dH 7-8

Hydrogen ion, pH 7-8

Consumption max 120 l/min

Compressed air

Pressure 6 bar

Classification of air according to ISO 8573-1 min 5

Air compressor performance 200 l/h

Oil and moisture pollution is not allowed, the air should be slightly lubricated

Environmental conditions

In accordance with ISO 669-1

Air Temperature +5 - +40ºС

Relative humidity 95%
