Brand: | MEP |
Double Strand Wire Size: | 2 x 12 |
Machine Type: | Stirrup Machine |
Single Wire Size: | 14 |

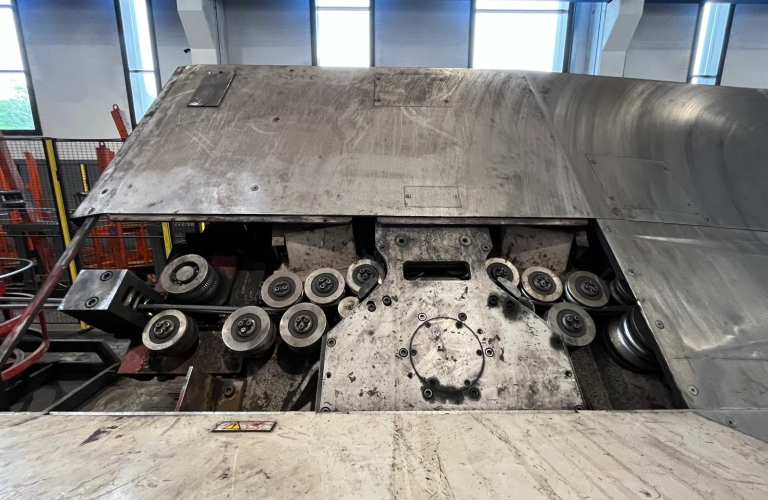

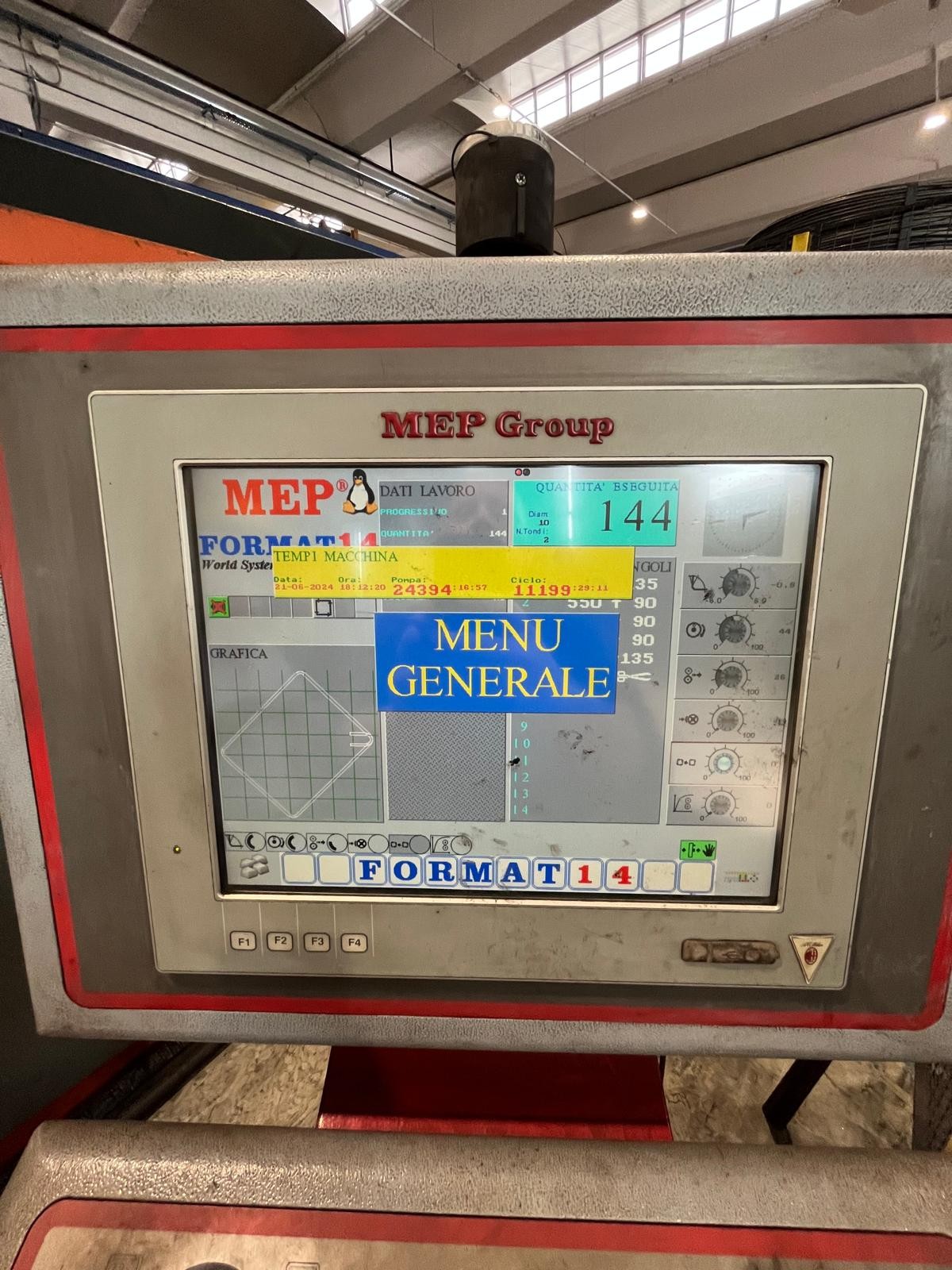

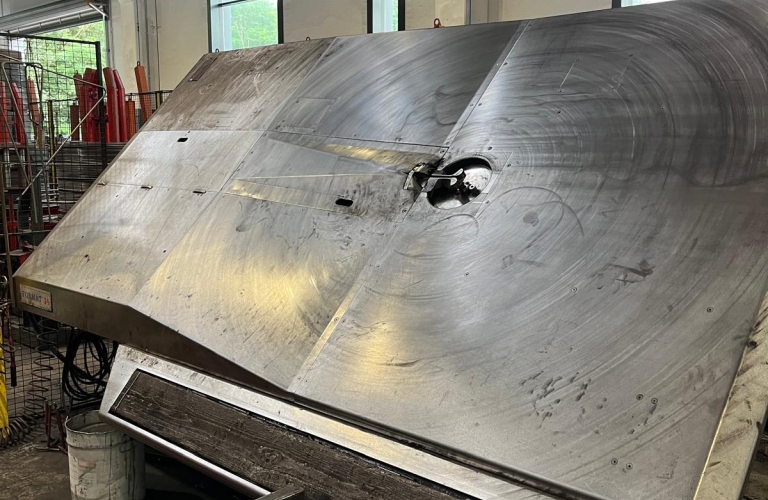

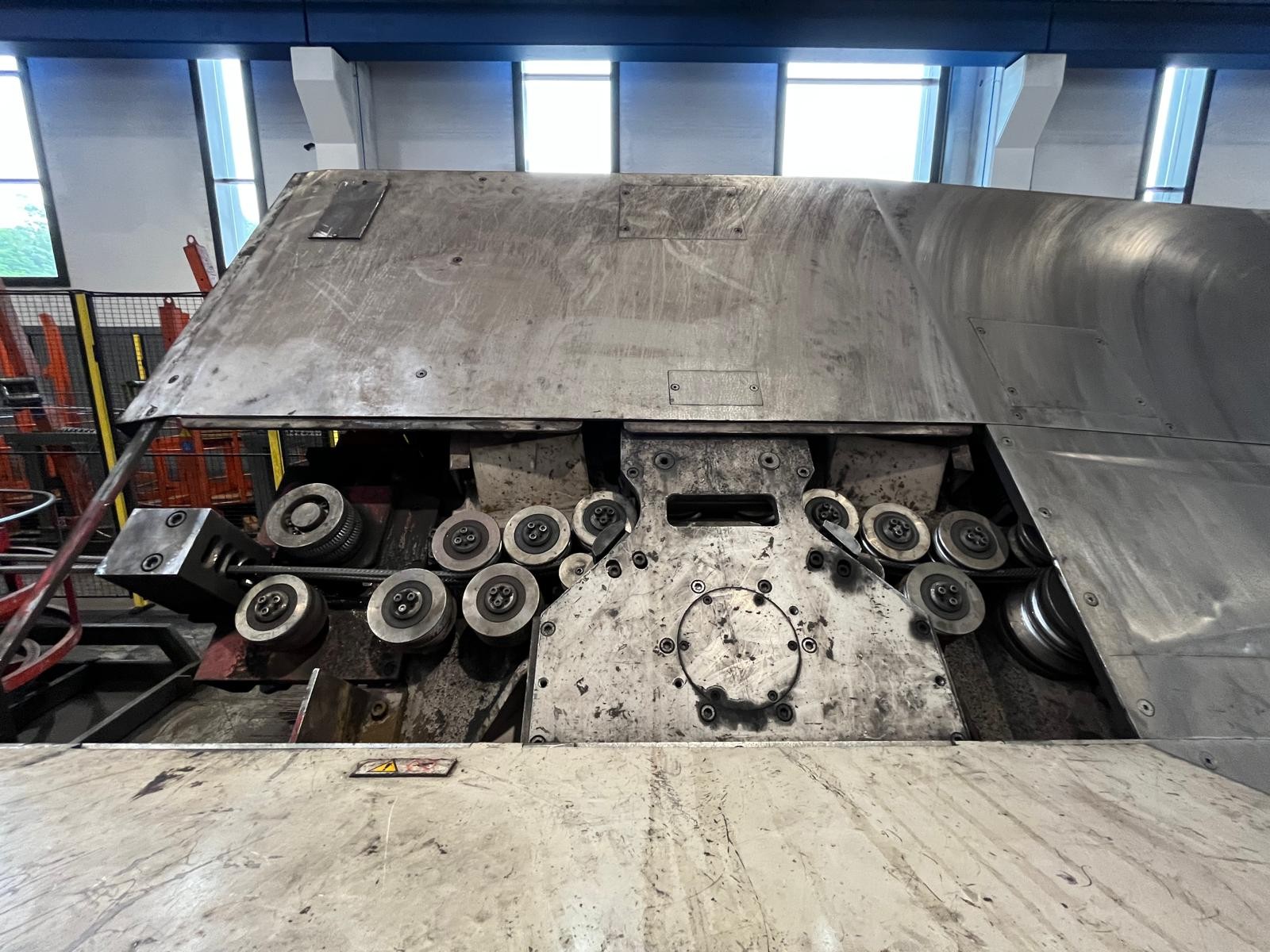

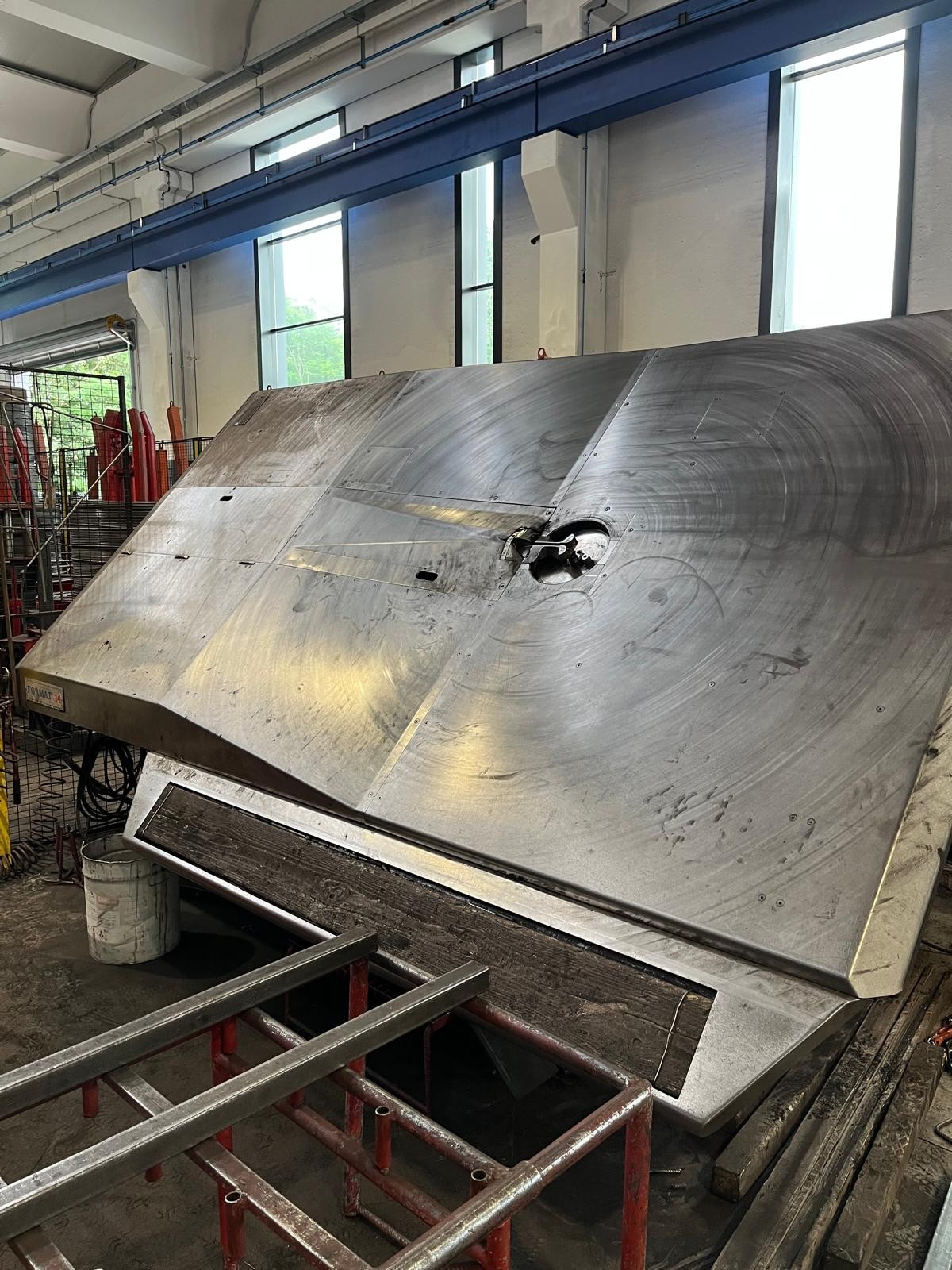

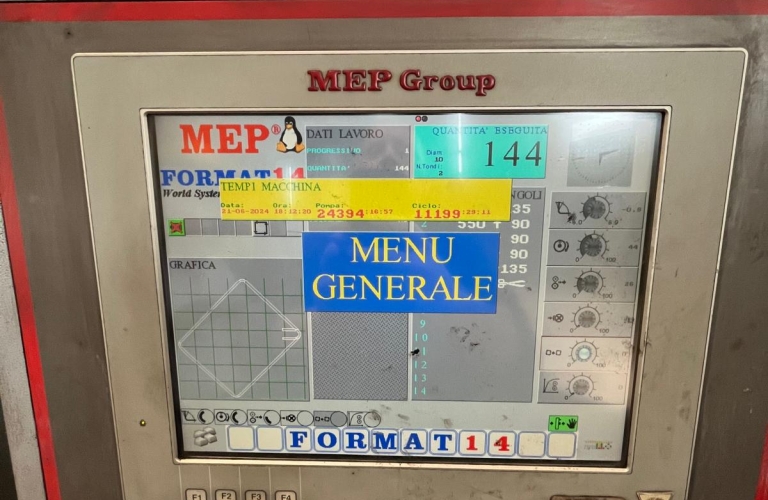

Used MEP Format 14 from 2007, 2 payoffs. Working condition.
TECHNICAL SPECIFICATIONS
| Voltage supply | 380 V - 50 Hz |
| Others voltages upon request | 200/415 V - 50/60 Hz |
| Installed power | 26 kW |
| Average absorbed power | 17.3 kW |
| Hydraulic unit capacity | 320 l |
| Infeed speed | 0 ÷ 1,6 m/s |
| Bending speed | 0 ÷ 1000 °/s |
| Shearing time | 4/10 s |
| Centre forming tools diameter | 12-24-32-40-48-60–70mm |

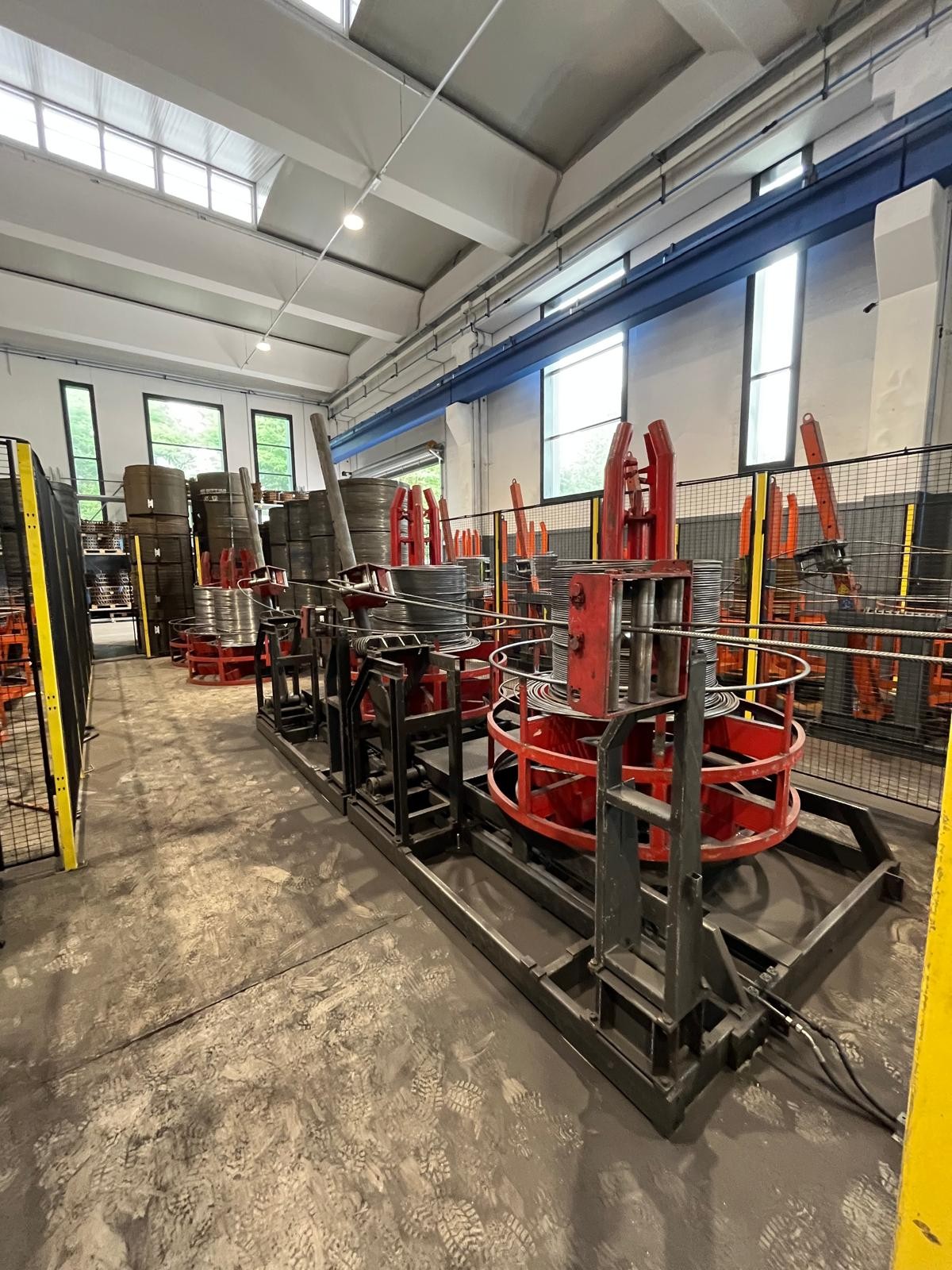

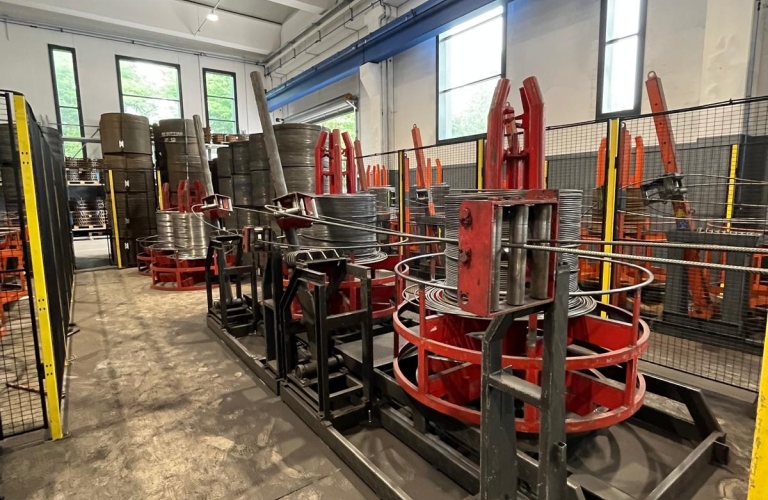

| Pay-off station max capacity | 3200 kg |
| Overall dimensions | |
| Machine | 4800 x 2600 x 2250 mm |
| Control cabinet | 650 x 550 x 1920 mm |
| LC pay-off station | 2500 x 2203 x 3000 mm |
| Weights | |
| Machine | 4380 kg |
| Control cabinet | 110 kg |
| LC pay-off station | 1194 kg |
PRODUCTION FEATURES
| Ribbed and plain rod type allowable maximum strength | |
| Max. unit yield point | 600 N/mm2 |
| Max. tensile strength | 800 N/mm2 |
| Diameter range | |
| Single ribbed or plain rod | Ø6 ÷ 14 mm |
| Double strand max. diameter | Ø12 mm |
| Operation for shape | |
| Side lengths | 1 ÷ 28 |
| Bends | 1 ÷ 27 |
| Max. vertical side length | 2000 mm |
| Min. first side length | 30 mm |
| Min. last side length | 20 mm |
| Max. angle in clockwise bend | 180° |
| Max. angle in anticlockwise bend | 180° |
| Tolorances | |
| Side lengths | ±1 mm/m |
| Bends | ±1° |
| Productivity | |
| Quantity of stirrup/hour (lengths developed 1100 mm with 5 bends) | 1400 |
| Program capacity | |
| Programmable memory codes | No limits |
| Pre-programmed memory codes | 69 |
