Buttwelder

Reducing down time and cost, is always a concern to any manufacturing company, a coil change can easily take 10-20 minutes and you properly have to do more coil changes per day.

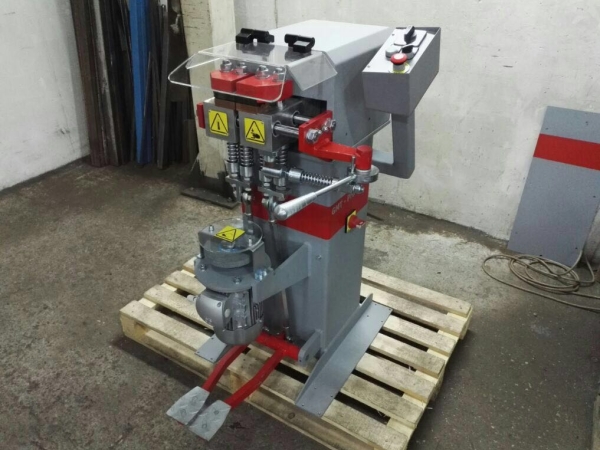

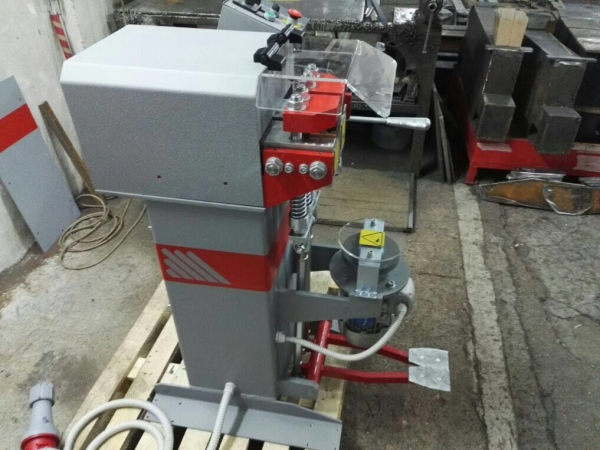

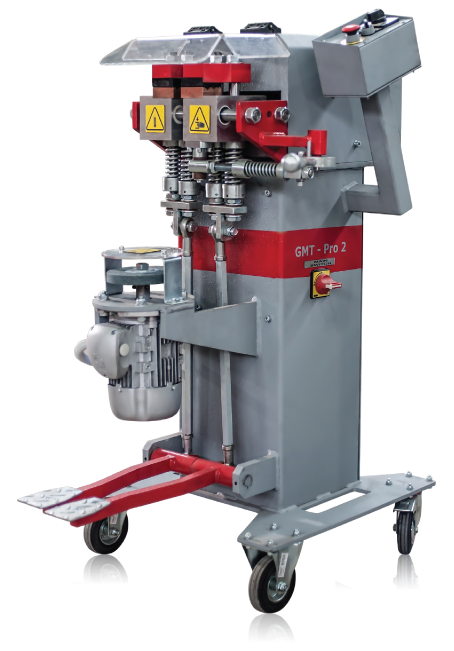

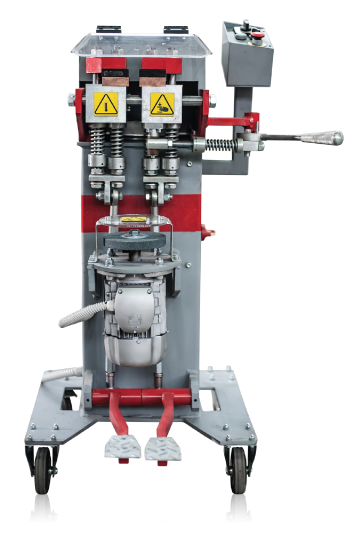

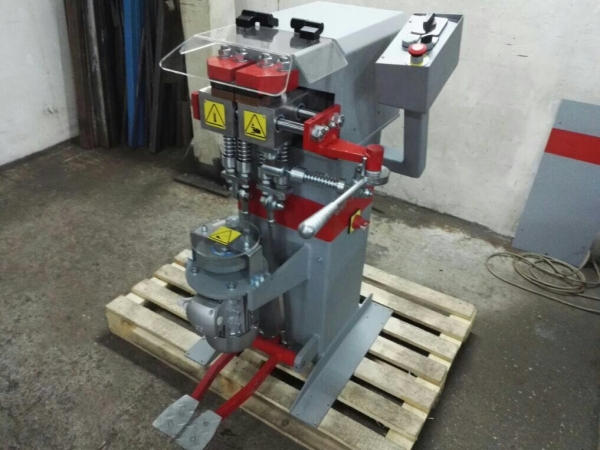

GMT Buttwelder Pro -2 which works in the range of 4 to 16 mm wire is a solid and robust Butt Welding machine where you can weld wire together in low-medium carbon steel in 20-45 sec. and avoid re-loading the coil machine with a new coil manual.

Technical specifications:

  • Welding transformer power: 18 KVA  400 V-50/60Hz
  • Control panel with welding control kit through microprocessor
  • Blocking system with clamps closed by adjustable springs
  • Pushing system with hand lever that is equipped by one adjustable spring for control the welding pressure,
  • Safety protections for the welding and for the grinder are made of Plexiglas, respecting CE Norms.
  • Chassis complete, movable tanks to 4 wheels, 2 fix, and 2 movable with breaking system.
  • Grinder on-board for the operations of cleaning the wire after the welding.
  • Electrical boards with safety protection circuit, Emergency push button.
  • User and maintenance manual in English language.
